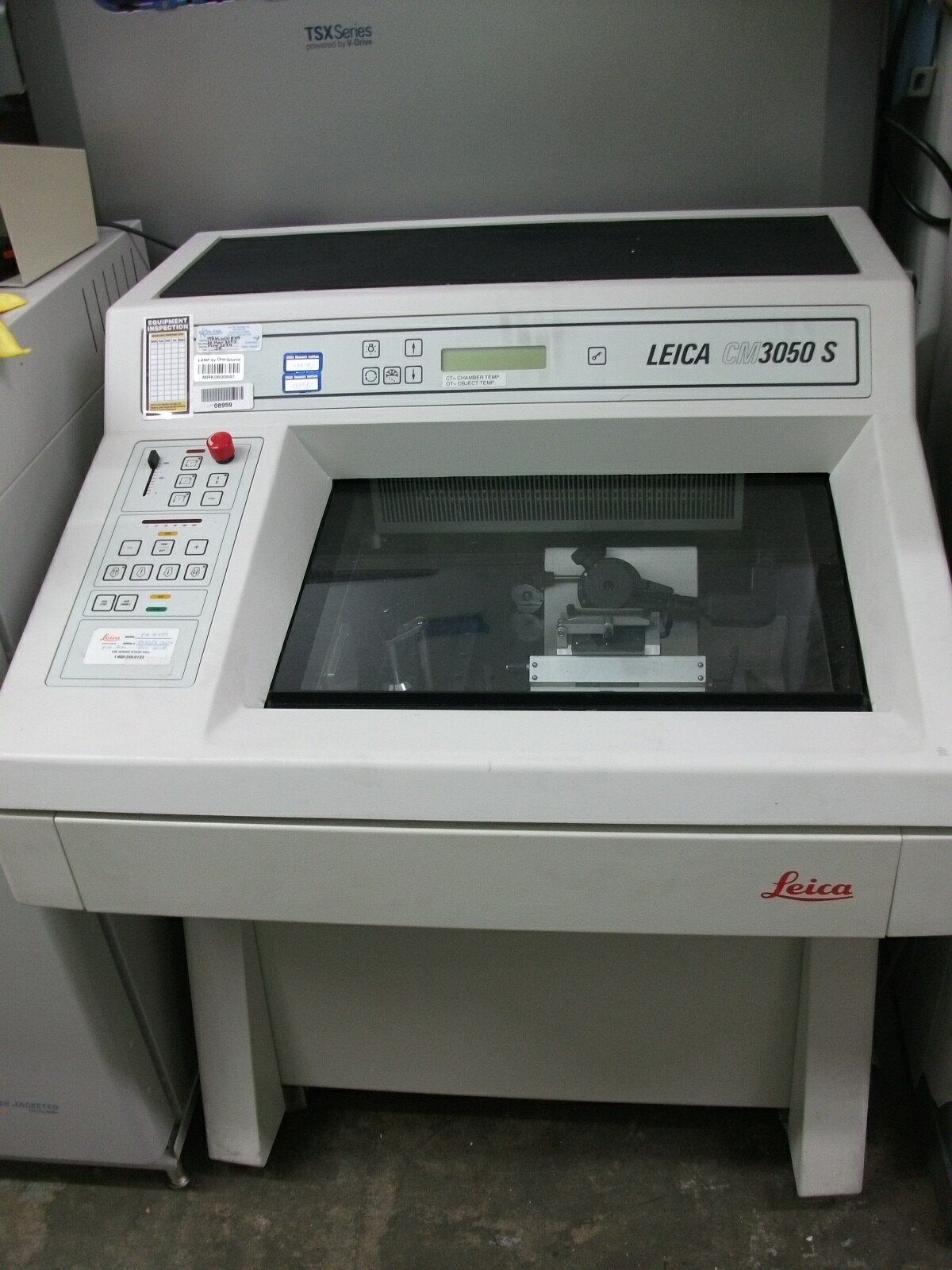

Leica CM 3050S Cryostat
The Leica CM3050 S cryostat is designed to help with processing multiple specimen and performing serial cuts, with uncompromised reproducibility, The low working height and available knee space of the Leica CM3050 S cryostat allow the user to work comfortably while sitting. Motorized drive and section counter improve productivity for multiple serial sections. Particularly when working with delicate specimens, e.g. brain samples, the precise specimen orientation and the specimen feed system provide for reproducible sections.
Model #: CM 3050S-3-1-1
Width: 882 mm
Depth: 766 mm
Height: 1040 mm
Weight (incl. microtome): approx. 180 kg
Temperature setting range: 0°C to -40°C
Maximum specimen size: 40 x 55 mm
Cutting speed: 0.1 mm/s to 170 mm/s; 0.1 mm/s to 100 mm/s
Vmax: 210 mm/s
Section thickness setting: 0.5 to 300 μm
Maximum specimen size: 40 mm x 55 mm
Horizontal specimen feed: 25 mm
Vertical specimen stroke: 59 mm
Specimen retraction: 50 pm
Specimen precision orientation by 8° (x/y/z axis)
Trimming: 5 to 150 μm ± 0,5 μm in steps of 5, 10, 30, 50, 100 and 150 μm
Motorized coarse feed at two speeds: 500 μm/s and 1,000 μm/s
Cutting speed ranges: 0.1 mm/s to 170 mm/s, 0.1 mm/s to 100 mm/s, Vmax 210 mm/s
Temperature setting range: 0°C to -40°C
Defrosting: programmable 1 automatic defrost cycle/24 h duration; from 6 to 12 min; manual defrosting
Freezing shelf temperature: Approx. -43°C at an ambient temperature of 22°C
Temperature setting range: -10°C to -50°C (+/-3 K)
Dimensions (W x H x D): 882 x 1040 x 766 mm
Weight (including microtome): Approx. 180 kg
Power draw: 1800 VA
Comes with our 90-day warranty.
